Description
Power meets elegance – the next generation of DC fast charging.

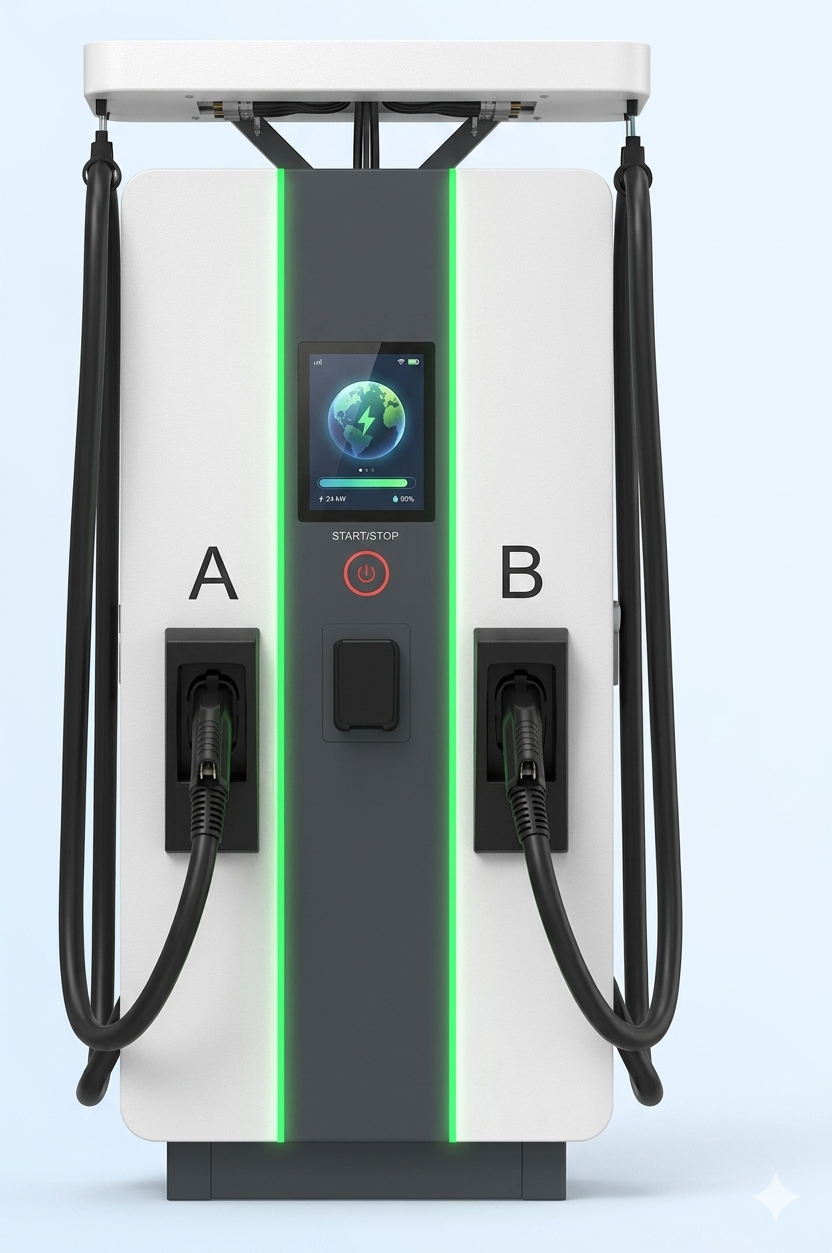

This ground-mounted DC fast charger combines high performance with a stunning novel design. Available in power configurations from 40kW to 240kW, it features a large 12-inch touchscreen, an eye-catching color light strip, and dual gun outputs. Whether you’re deploying at a highway rest stop, urban charging hub, or fleet depot, this charger delivers reliability, speed, and style.
⚡ Key Features
-
Wide power range – 40kW | 60kW | 80kW | 100kW | 120kW | 160kW | 180kW | 240kW
-
Dual outputs – charge two EVs simultaneously
-
Novel appearance – modern, eye-catching design
-
Color light strip – visual charging status indicator (optional)
-
12-inch color touchscreen – large, friendly interface with shell protection
-
Wide voltage range – DC 200–1000V (800V ready)
-
High current output – 150–250A per gun (depending on power)
-
Power factor – ≥0.99 (50% load above)
-
Retractor device – cable management system (optional)
-
Multiple charging modes – flexible charging options
-
Multiple connectivity – Ethernet / 3G / 4G / WiFi (optional)
-
Flexible authentication – QR Code / RFID Card / Password Login / OCPP 1.6J (optional)
-
All major DC connectors – GBT / CCS 1 / CCS 2 / CHAdeMO (optional)
-
10 safety protections – overcurrent, surge, leakage, short circuit, overtemperature, etc.
-
IP54 rated – weather-resistant for outdoor installation
-
Air-cooled – reliable thermal management
-
Online data upgrade – future-proof firmware
🎯 Applicable Scenes
| Scene | Application |
|---|---|
| 🛣️ Highway rest stops | Fast charging for long-distance travelers |
| 🚌 Bus depots | Overnight and opportunity charging |
| 🚕 Taxi ranks | Quick turnaround between fares |
| 🚚 Logistics hubs | EV truck and delivery van charging |
| 🅿️ Public charging stations | Urban and suburban EV infrastructure |
| 🏢 Commercial parking garages | Tenant and visitor charging |
| 🚗 Car dealerships | Demo and service vehicle charging |
| 🏘️ Residential complexes | Shared community fast charging |
📦 Technical Specifications
| Parameter | Details |
|---|---|
| EV Charger Type | DC |
| Power options | 40kW / 60kW / 80kW / 100kW / 120kW / 160kW / 180kW / 240kW |
| Mounting | Ground-mounted |
| Input system | Three-Phase, 5 Wire AC |
| Input voltage | AC380V ±15% / AC260–530V |
| Input frequency | 45–65Hz |
| Output type | DC 200–1000V |
| Number of outputs | 2 |
| Output current (per gun) | 150–250A (varies by power configuration) |
| Power factor | ≥0.99 (50% load above) |
| Operating temp | -25°C to +55°C |
| Humidity | 5–95% |
| Storage temp | -40°C to +70°C |
| IP rating | IP54 |
| Cooling | Air-cooled |
| Display | 12-inch touchscreen with shell |
| User authentication | QR Code / RFID Card / Password Login |
| Metering | Consumption units |
| OCPP protocol | 1.6J (optional) |
| CMS interface | Ethernet / 3G / 4G / WiFi (optional) |
