AC Wallbox Charger | 3.5kW–22kW | Type 1/Type 2/GBT | OCPP Ready

Description

Power your EV safely and smartly – indoors or outdoors.

This wall-mounted / column-type AC charger delivers reliable charging for electric vehicles across all standards. Whether you need a 3.5kW home charger or a 22kW commercial unit, the same compact design fits apartments, office parking, and public stations.

🔌 Key Features

• 4 power levels – 3.5kW / 7kW / 11kW / 22kW

• 4.3-inch color touchscreen – clear status & interaction

• Multiple connectivity – Ethernet / 3G / 4G / WiFi (optional)

• User authentication – RFID card / QR code / OCPP 1.6J (optional)

• Global connector options – GBT / Type 1 / Type 2

• 10 safety protections – overcurrent, surge, leakage, short circuit, overtemperature, etc.

• IP54 rated – weather-resistant for outdoor use

• Online data upgrade – future‑proof firmware updates

📦 Technical Highlights

🔒 Safe & Reliable

Designed for continuous commercial or residential use with ten independent protection mechanisms, including residual current monitoring and surge protection.

✅ Perfect for

• Apartment blocks & gated communities

• Office & hotel parking

• Fleet depots

• Public charging stations (with OCPP & CMS integration)

---

Attributes (for WooCommerce product variations)

---

Product Data (WooCommerce backend)

• Price – set variable pricing per power/option

• SKU example – ACB-L007A-T2 (7kW, Type 2)

• Categories – EV Chargers, Commercial Charging, AC Charging

• Tags – wallbox, OCPP, RFID charger, Type 2, GBT

• Dimensions –

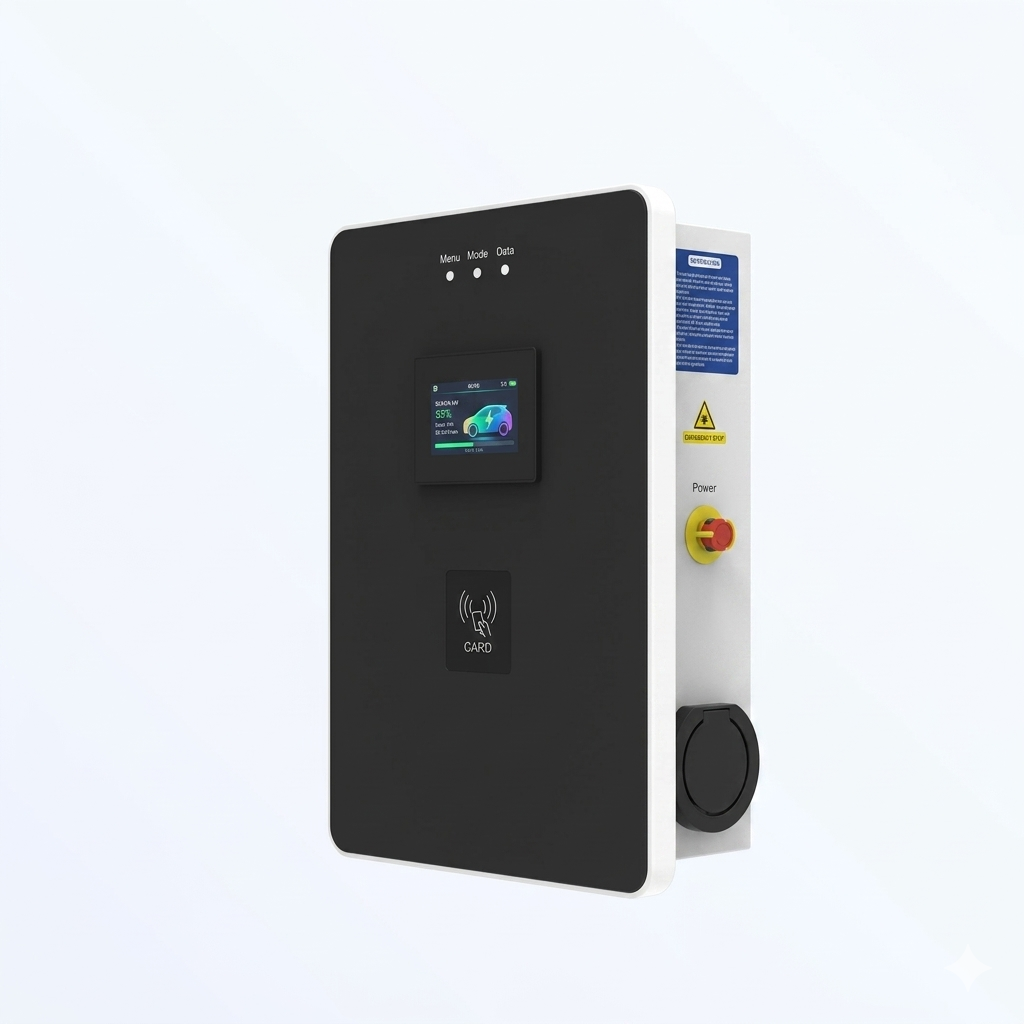

  • Wall-mounted: 359×140×510 mm

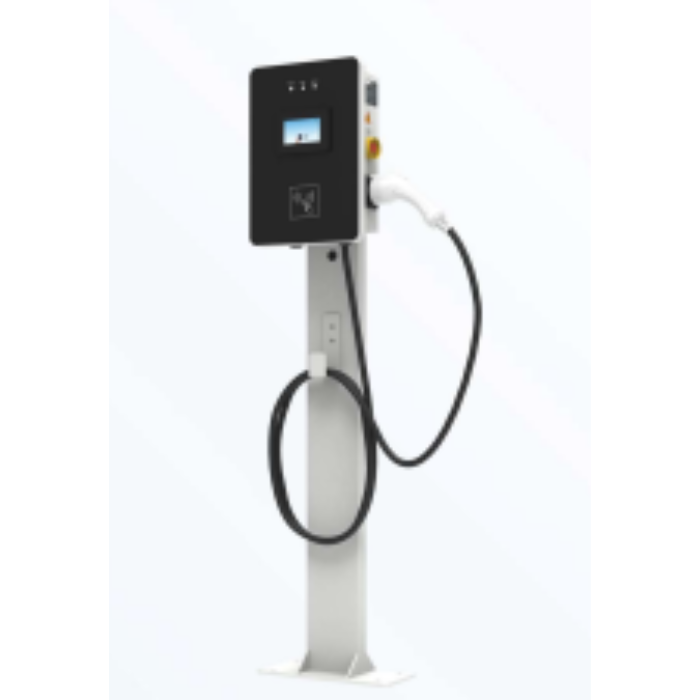

  • Column type: 324×161×1430 mm

• Weight – suggest ~8 kg (wallbox) / ~18 kg (column)

• Shipping class – Large / Freight for column type
