Description
Fast charging wherever you need it – no permanent installation required.

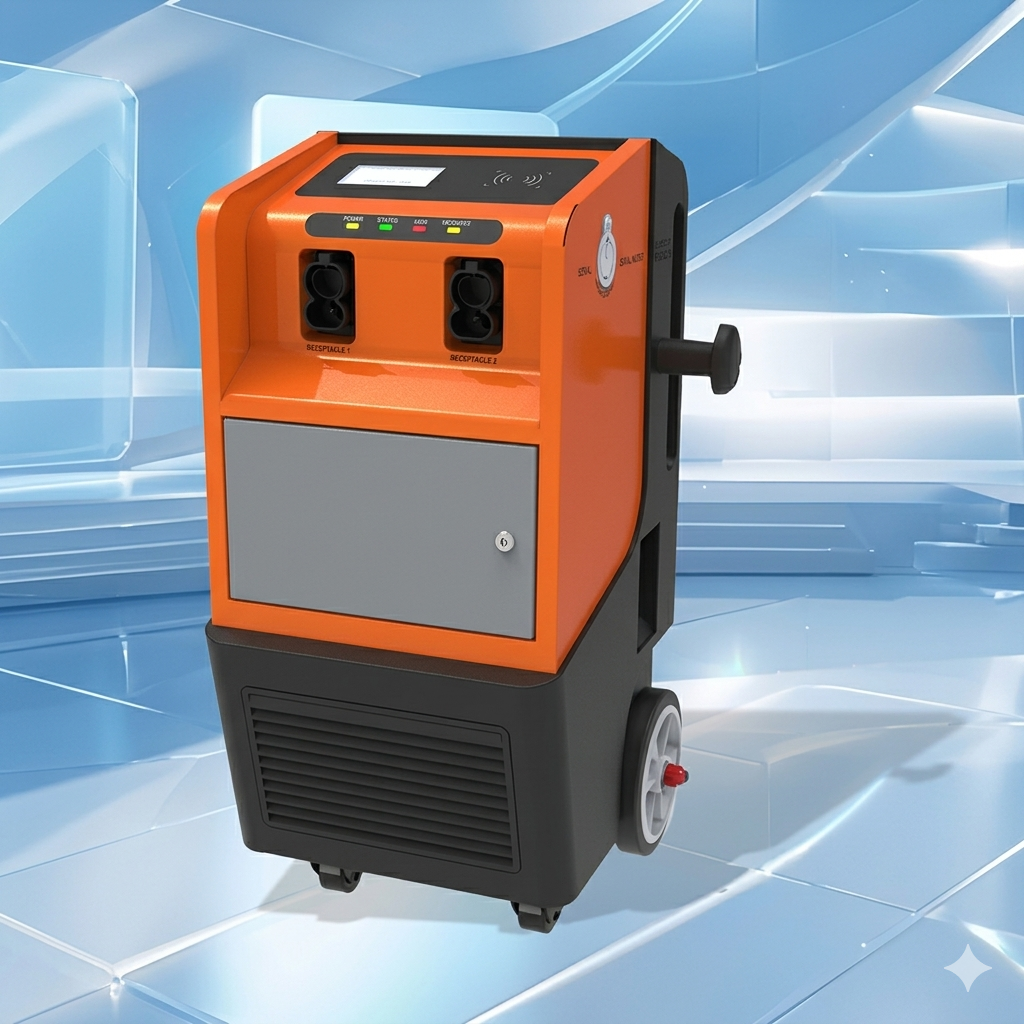

The HSDC40kW Mobile DC Charger is a truly portable DC fast charging solution. Simply connect to a compatible power source via the aviation plug, and you’re ready to charge. With dual CCS2 outputs, 40kW of power, and a rugged IP54 enclosure, this mobile charger is ideal for temporary deployments, emergency roadside assistance, events, and backup charging for fleets.
⚡ Key Features
-
40kW rated power – fast DC charging on the go
-
Dual outputs – charge two EVs simultaneously
-
Truly portable – aviation plug power connection (no hardwiring)
-
Wide voltage range – DC 200–1000V (800V ready)
-
Max output current – 130A per channel
-
High efficiency – ≥95% at full load
-
Power factor – ≥0.99
-
7-inch LCD touchscreen – intuitive operation
-
Dual authentication – QR Code / RFID Card / Password (optional)
-
CCS2 connector – European standard (CCS1 optional)
-
Multiple communication options – Ethernet / 4G / WiFi (optional)
-
OCPP ready – 1.6J or 2.0.1 protocol (upgradable)
-
IP54 rated – outdoor use (rain/dust resistant)
-
5-meter charging cable – per gun
-
Emergency stop button – built-in
-
10+ safety protections – over/under voltage, short circuit, over current, over temperature, leakage, lack of phase, etc.
-
Rugged construction – 1.2mm galvanized steel (SECC) housing
🎯 Applicable Scenes
| Scene | Application |
|---|---|
| 🚛 Roadside assistance / rescue | Mobile charging for stranded EVs |
| 🎪 Events & exhibitions | Temporary EV charging for attendees |
| 🚚 Fleet backup | Emergency charging for delivery vans |
| 🏗️ Construction sites | Temporary EV charging for crew vehicles |
| 🚗 Dealerships | Mobile demo and service charging |
| 🎬 Film & TV productions | On-location EV charging |
| 🏕️ Remote locations | Where permanent chargers don’t exist |
| 🚑 Emergency services | Backup for electric emergency vehicles |
“Perfect when you need DC fast charging but can’t install a permanent unit.”
📦 Technical Specifications
| Parameter | Details |
|---|---|
| Model | HSDC40KW |
| Rated Power | 40kW |
| Housing Material | Galvanized sheet (SECC 1.2mm) |
| Dimensions | 1260 × 680 × 600 mm |
| Weight | 140 kg |
AC Input (via Aviation Plug)
| Parameter | Details |
|---|---|
| Power supply system | TN-S or TN-C-S |
| Power supply form | 3P + N + PE |
| Input voltage | 3-phase, 400V ±10% |
| Input frequency | 50/60 ±3Hz |
| Input current | 63A |
DC Output
| Parameter | Details |
|---|---|
| Number of outputs | 2 |
| Output voltage range | DC 200–1000V |
| Max current per channel | 130A |
| Current stabilizing precision | ≤ ±1% |
| Voltage stabilizing precision | ≤ ±0.5% |
| Efficiency | ≥95% (full load) |
| Power factor | ≥0.99 |
| Charging gun cable length | 5m (per gun) |
| Connector standard | CCS2 (CCS1 optional) |
General Characteristics
| Parameter | Details |
|---|---|
| Display | 7-inch LCD touchscreen |
| Card reader | ISO/IEC 14443A, Mifare |
| Environment | Indoors or outdoor |
| Operating temperature | -25°C to 50°C |
| Storage temperature | -40°C to +80°C |
| Operating humidity | ≤95% (no condensation) |
| Altitude | <2000m (79–106kPa) |
| IP rating | IP54 |
| Noise | <65dB |
| User authentication | QR Code / RFID Card / Password (optional) |
| Communication to CMS | Ethernet / 4G / WiFi (optional) |
| OCPP protocol | 1.6J / 2.0.1 (upgradable) |
